Introduction

GTS is proud to associate as the exclusive representative for India with the world leaders WS Thermal, GmbH pioneers and a guiding force in innovation and shaping the future of Energy efficient and Low emission burner technology.

WS is the leading and the largest suppliers of burners with integrated recuperator i.e. Self Recuperative & Self Regenerative Burners with FLOX® Technology.

Key Benefits of WS Thermal technology burner system

  • High energy efficiency (up to 90%)
  • Lower operating costs
  • Higher productivity
  • Improved temperature uniformity
  • Low NOx - emissions
  • Longer equipment life
  • Safe operation
  • Less and easy maintenance

for more details visit : www.flox.com

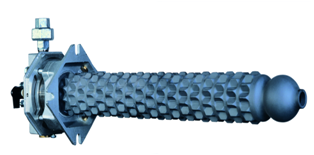

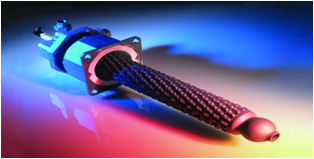

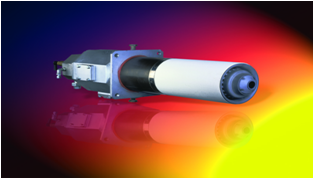

Self Recuperative Burners with Ceramic Heat Exchanger

  • Models : Rekumat® C80, C100, C150 & CX200
  • Fuel : LPG/Propane/Butane/Natural Gas
    Any other clean non aggressive gas
  • Minimum Capacity : 5 kW (4300 Kcal/hr)
  • Maximum Capacity : 100 kW (86000 Kcal/hr)
  • Max. Furnace Temp (Direct Firing) : 1300°C
  • Max. Furnace Temp (In direct Heating) : 1250°C
  • Combustion Mode (Flame-Standard) : High Velocity Combustion
  • FLOX® Mode (option) : FLOX® mode above 850°C
  • Flame Safety : One Common electrode for Ignition &
    Flame Sensing. UV Cell option is available.
  • Burner Control : ON/OFF
  • Recuperator (Heat exchanger) : Ceramic




Application : Suitable for Direct Firing and Indirect radiant tube (Single End, P-Tube, PP-Tube and A-Tube) Heating

  • Strip Line Furnaces (CGL / CAL)
  • Stainless Steel A&P Lines
  • Car Bottom Furnaces
  • Roller Hearth Furnaces
  • Mesh Belt Furnaces
  • Carburizing & Tempering Furnaces
  • Forge Furnaces
  • Pit Type Furnaces
  • And many other heat treatment furnaces

for more details visit : www.flox.com

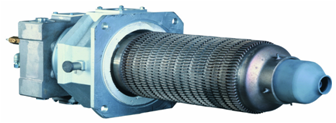

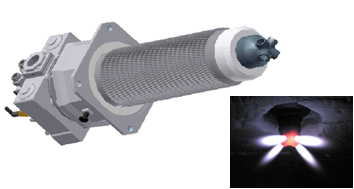

Self Recuperative Burners with Metallic Heat Exchanger

  • Models : Rekumat® M150, M200, M250 & M300
  • Fuel : LPG/Propane/Butane/Natural Gas
    Any other clean non aggressive gas
  • Minimum Capacity : 30 kW (25800 Kcal/hr)
  • Maximum Capacity : 250 kW (215000 Kcal/hr)
  • Max. Furnace Temp (Direct Firing) : 1150°C
  • Max. Furnace Temp (In direct Heating) : 1000°C
  • Combustion Mode (Flame-Standard) : Air Staged High Velocity Combustion
  • FLOX® Mode (option) : FLOX® mode above 850°C
  • Flame Safety : One Common electrode for Ignition &
    Flame Sensing. UV Cell option is available.
  • Burner Control : ON/OFF
  • Recuperator (Heat exchanger) : Metallic




Application : Suitable for Direct Firing and Indirect radiant tube (Single End, P-Tube, PP-Tube and A-Tube) Heating

  • Strip Line Furnaces (CGL / CAL)
  • Stainless Steel A&P Lines
  • Car Bottom Furnaces
  • Roller Hearth Furnaces
  • Mesh Belt Furnaces
  • Carburizing & Tempering Furnaces
  • Forge Furnaces
  • Pit Type Furnaces
  • And many other heat treatment furnaces

for more details visit : www.flox.com

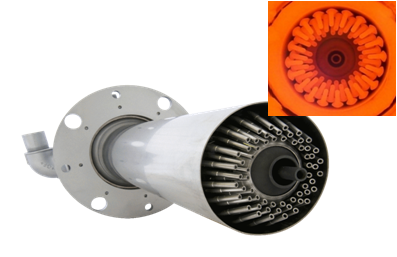

Gap Flow Self Recuperative Burners

  • Models : Rekumat® S100, C150 & CX200
  • Fuel : LPG/Propane/Butane/Natural Gas
    Any other clean non aggressive gas
  • Minimum Capacity : 10 kW (8600 Kcal/hr)
  • Maximum Capacity : 100 kW (86000 Kcal/hr)
  • Max. Furnace Temp (Direct Firing) : 1050°C
  • Max. Furnace Temp (In direct Heating) : 1000°C
  • Combustion Mode : Start/Flame/FLOX®
    FLOX®mode above 850°C
  • Flame Safety : Ignition by igniton electrode & Flame Sensing
    by Flame Electrode. UV Cell option is available.
  • Burner Control : ON/OFF
  • Recuperator (Heat exchanger) : Metallic Tubes


Application : Suitable for Direct Firing and Indirect radiant tube (Single End, P-Tube, PP-Tube and A-Tube) Heating

  • Strip Line Furnaces (CGL / CAL)
  • Stainless Steel A&P Lines
  • Car Bottom Furnaces
  • Roller Hearth Furnaces
  • Mesh Belt Furnaces
  • Carburizing & Tempering Furnaces
  • Forge Furnaces
  • Pit Type Furnaces
  • And many other heat treatment furnaces

for more details visit : www.flox.com

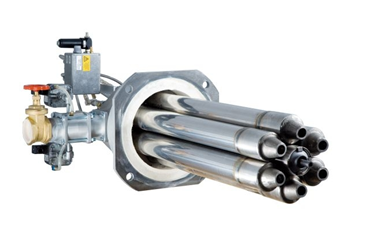

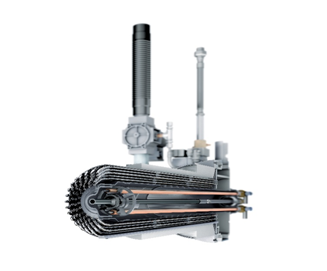

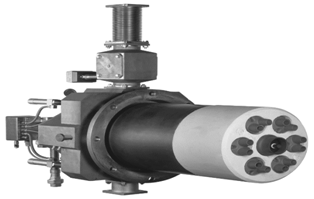

Self Regenerative Burners

  • Models : Regemat® 250, 350 & 400
  • Fuel : LPG/Propane/Butane/Natural Gas
    Any other clean non aggressive gas
  • Minimum Capacity : 120 kW (103200 Kcal/hr)
  • Maximum Capacity : 450 kW (387000 Kcal/hr)
  • Max. Furnace Temp (Direct Firing) : 1250°C
  • Max. Furnace Temp (In direct Heating) : 1050°C
  • Combustion Mode : Flame / FLOX® Mode
    FLOX® mode above 850°C
  • Flame Safety : UV Cell (Standard)
  • Burner Control : ON/OFF
  • Recuperator (Heat exchanger) : Regenerative media




Application : Suitable for Direct Firing and Indirect radiant tube (Single End, P-Tube, PP-Tube and A-Tube) Heating

  • Strip Line Furnaces (CGL / CAL)
  • Stainless Steel A&P Lines
  • Reheating Furnaces
  • Car Bottom Furnaces
  • Roller Hearth Furnaces
  • Tube Annealing Furnaces
  • Mesh Belt Furnaces
  • Carburizing & Tempering Furnaces
  • Forge Furnaces
  • Pit Type Furnaces
  • And many other heat treatment furnaces

for more details visit : www.flox.com

Radiant Tubes


Coming Soon. . .


for more details visit : www.flox.com

WS Application Matrix

Max. aplication Temperature
450-750°C 750-1050°C 750-1150°C 1150-1300°C
REKUMAT® S100 10-20 kW - REKUMAT® C80 5-15 kW
- REKUMAT® C100 15-25 kW
REKUMAT® S150-NT 30-50 kW REKUMAT® S150 30-40 kW REKUMAT® M150 30-50 kW REKUMAT® C150 30-50 kW
REKUMAT® S200-NT 50-100 kW REKUMAT® S200 50-100 kW REKUMAT® M200 50-100 kW REKUMAT® CX200
REKUMAT® CS200
50-100 kW
REKUMAT® S250 120-140 kW REKUMAT® M250 100-240 kW
  REGEMAT® M250 100-140 kW REGEMAT® 300 100-200 kW (Boost 400 kW)
REKUMAT® M300 160-300 kW REGEMAT® 450 150-300 kW (Boost 450 kW)
