Introduction
GTS exclusively represents Industrial Combustion, USA for their entire range of Package Burners for Boilers, Thermic Fluid Heaters, Kilns and Dryers.
Industrial Combustion is a leading manufacturer of burners designed for commercial, industrial, and institutional applications. The history of IC product line is a long and enviable one. Started Operation – 1930 (82 Years). IC is a leader in both Domestic and International markets (2nd largest package burner supplier in USA).
- Developed First air-atomized oil burner with rotary vane air compressor rotary vane air compressor
- Wide range of products (from 160 KW to greater than 29,000 KW)
- Industrial Combustion burners are burner-of-choice when upgrading existing boiler Installations for maximum fuel efficiency
- Large Fuel Choices - LPG/Propane/Natural gas, oil, or combination fuels. Also used for alternate fuels like Waste oil and Reformulated oils, Tallow (animal fat, yellow grease), Refinery waste gas, Digester gas, Landfill gas and Biodiesel fuel etc.
- All Industrial Combustion burners feature true forced draft design for superior control of the air/fuel mixture
- Low-emissions burners come equipped with state-of-the-art technology and control systems
- High turndown ratios (10:1 on natural gas and up to 8:1 on light oil)
- Backward-curved impeller provides adequate combustion air for various furnace pressures
- Hinged rear door and burner access panels for easy access and maintenance
- UL & cUL listed

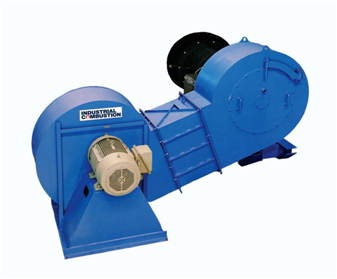

XL / LNXL SERIES - FLOOR SUPPORTED
- Suitable for large fire tube and water tube applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2 Combination Oil & Gas
- Capacity(Gas Input): 67,200,000 to 92,400,000 Btu/hr
- Capacity(Oil Input): 480 to 660 GPH
- 1800 RPM combustion air fan (Motor HP based on NOx and capacity requirement)
- Precise air metering system which permits accurate air-to-fuel settings
- offers high turndown up to 10:1 on natural gas and up to 8:1 on light oil.
- Parallel positioning is standard for optimal control throughout the firing range
- Low NOx with FGR capabilities (LN Model Only)
- Gas manifold on oil burners standard for easy upgrade to combination units
- Air atomizing with steam atomization optional
- Backward-curved impeller provides adequate combustion
- air for various furnace pressures
- Hinged rear door and burner access panels for easy access and maintenance

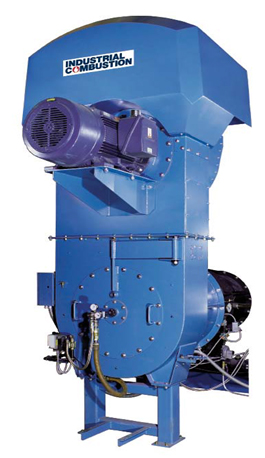

XL / LNXL SERIES - FAN OVER
- Suitable for large fire tube and water tube applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2 Combination Oil & Gas
- Capacity(Gas Input): 37,800,000 to 63,000,000 Btu/hr
- Capacity(Oil Input): 270 to 450 GPH
- 3600 RPM combustion air fan (Motor HP based on NOx and capacity requirement)
- Precise air metering system which permits accurate air-to-fuel settings
- offers high turndown up to 10:1 on natural gas and up to 8:1 on light oil.
- Parallel positioning is standard for optimal control throughout the firing range
- Low NOx with FGR capabilities (LN Model Only)
- Gas manifold on oil burners standard for easy upgrade to combination units
- Air atomizing with steam atomization optional
- Backward-curved impeller provides adequate combustion
- air for various furnace pressures
- Hinged rear door and burner access panels for easy access and maintenance

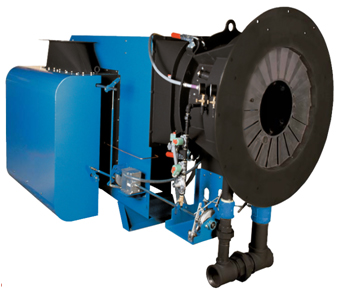

S1 / LNS1 - SERIES
- Suitable for scotch marine and water tube boiler applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 46,200,000 to 63,000,000 Btu/hr
- Capacity(Oil Input): 330 to 450 GPH
- Gas, light and heavy oil fuels
- Cam trim with 14-point adjustment range for consistent air/fuel ratios
- Parallel positioning available for optimal control throughout the firing range
- Low NOx with FGR capabilities
- Top or bottom FGR connection options
- Gas manifold on oil burners standard for easy upgrade to combination units
- Air atomizing with steam atomization optional
- Backward-curved impeller provides adequate combustion
- air for various furnace pressures
- Hinged rear door and burner access panels for easy access and maintenance
- High turndown ratios

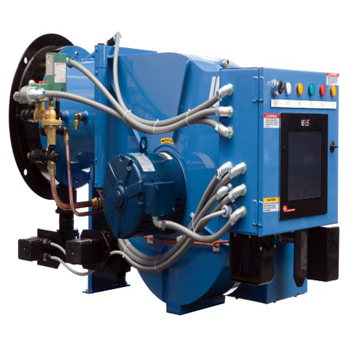

E / LNE - SERIES
- Suitable for fire tube, fire box and water tube boilers applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 8,400,000 to 42,000,000 Btu/hr
- Capacity(Oil Input): 60 to 300 GPH
- Gas, light and heavy oil fuels
- Standard emissions & Low NOx capabilities
- Up to 10:1 turndown on natural gas, 8:1 turndown on light oil
- O2 trim, variable speed drives and more
- Low pressure drop head design
- Low motor horsepower for increased energy efficiency
- Gas manifold on oil burners standard for easy upgrade to combination units
- Hinged rear door and burner access panels for easy access and maintenance
- UL & cUL listed

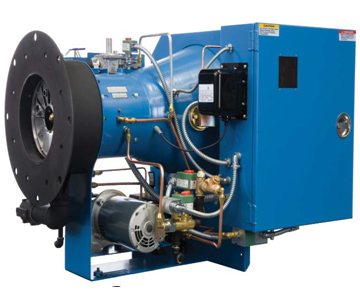

D / LND - SERIES
- D series burners are performance proven in boiler, heater, furnace, kiln and dryer applications worldwide.
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 4,200,000 to 42,000,000 Btu/hr
- Capacity(Oil Input): 30 to 300 GPH
- Low-pressure air atomizing system on oil with rotary vane compressor
- Cam trim with 14-point adjustment range for consistent air/fuel ratios
- Parallel positioning available for optimal control throughout the firing range
- Low NOx with FGR capabilities
- Piston-type positive displacement oil metering system
- Gas manifold on oil burners standard for easy upgrade to combination units
- Backward-curved impeller provides adequate combustion air for various furnace pressures
- Nozzle line electric heater standard on medium to heavy oil burners
- Hinged rear door and burner access panels for easy access and maintenance
- FGR modulating valve
- UL & cUL listed

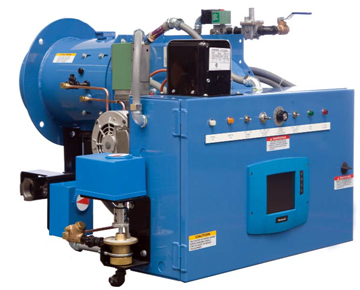

M - SERIES
- M series burners are performance proven in boiler, heater, furnace, kiln and dryer applications.
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 1,400,000 to 10,500,000 Btu/hr
- Capacity(Oil Input): 10 to 75 GPH
- Low-pressure air atomizing system on oil with rotary vane compressor
- Cam trim with 14-point adjustment range for consistent air/fuel ratios standard on models M34-105
- Parallel positioning available for optimal control throughout the firing range
- Low NOx with FGR capabilities
- Piston-type positive displacement oil metering system
- Gas manifold on oil burners standard for easy upgrade to combination units
- Backward-curved impeller provides adequate combustion air for various furnace pressures
- Nozzle line electric heater standard on medium to heavy oil burners
- Hinged rear door and burner access panels for easy access and maintenance
- Refractory combustion cone
- Full modulation
- UL & cUL listed

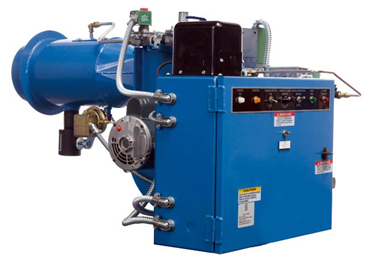

V / LNV - SERIES
- Suitable for fire tube, water tube and cast iron boilers applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 1,300,000 to 16,800,000 Btu/hr
- Capacity(Oil Input): 9.3 to 120 GPH
- Natural gas, propane gas, pressure atomized #2 oil and combination gas/oil fuel options
- Cam trim with 14-point adjustment range for consistent air/fuel ratios
- Parallel positioning available for optimal control throughout the firing range
- Up to 10:1 turndown on natural gas and optional low NOx with up to 5:1 turndown
- Unique aerodynamic air damper design for optimal flow control
- Forced draft for clean and efficient combustions
- Top or rear mount panel options
- Induced FGR, FGR modulating valve & FGR shutoff valve
- Cam trim with 14-point adjustment range on FGR
- No. 2 oil capability for back-up fuel
- UL & cUL listed

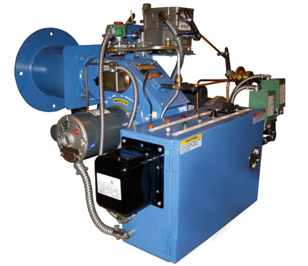

K - SERIES
- Suitable for fire tube boilers applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 1,300,000 to 16,800,000 Btu/hr
- Capacity(Oil Input): 9.3 to 120 GPH
- Natural gas, propane gas, pressure atomized #2 oil and combination gas/oil fuel options
- Cam trim with 14-point adjustment range for consistent air/fuel ratios on models K54-145
- Parallel positioning available for optimal control throughout the firing range
- Multi-blade-type air damper systems with silencer
- Forced draft for clean and efficient combustions
- Top or rear mount panel options
- UL & cUL listed
FP - SERIES
- Suitable for cast iron, firebox and scotch marine boilers applications
- Fuel : LPG/Propane/Natural Gas/Fuel Oil#2/ Heavy Oil Combination Oil & Gas
- Capacity(Gas Input): 1,300,000 to 16,800,000 Btu/hr
- Capacity(Oil Input): 9.3 to 120 GPH
- Gas, light oil and combination gas/oil fuels
- Gas/electric ignition on gas and combination gas/oil units
- Direct spark ignition on oil units
- Upright model option for low boiler base heights
- Honeywell and Fireye control options
- Remote oil pump optional
- Pressure atomized
- On/Off standard on models 5-7
- Low-High-Low/Off standard on models 8-25
- Full modulation standard on models 28-42
- UL & cUL listed
